Portable laser marking machine
Portable laser marking machine
Specifications:

Device model: BX-GQ10, BX-GQ20

Laser power: 10W, 20W

Laser wavelength: 1064nm

Beam quality (M2): ≤1.5

Laser repetition frequency: 20 ~ 200KHz

Marking range: 70 × 70 (mm), 110 × 110 (mm) (optional)

Maximum linear speed: 9000mm / s

Minimum line width: 0.03mm

Minimum character: 0.15

Cooling method: air cooling

Total power consumption: 500W, 550W

Power demand: 220V / 50Hz

Appearance size: 280 × 680 × 510mm

Feature description

1. Portable design, small size, easy to move;
2. The mechanical structure of this machine is all made of aluminum alloy, with light weight and good heat dissipation;
3. Independently developed control board and marking software, easy to customize and maintain;
4. Any office computer can be used for drawing and marking, eliminating the need for graphics conversion between different computers.

Application area

Electronic components, hardware tools, electrical products, consumer goods, sensors, auto parts, crafts, precision equipment, gift accessories, medical equipment, high and low voltage electrical appliances, sanitary ware, etc., especially suitable for production lines, shops, etc. Places with certain requirements for mobility.

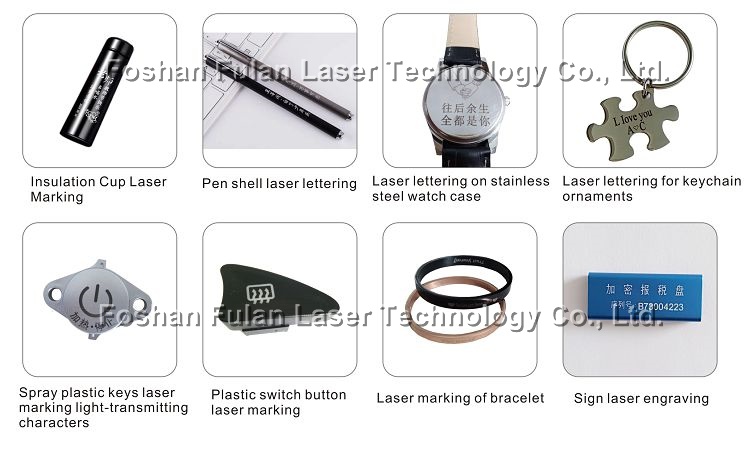

Sample show
