Online flight fiber laser coding machine
Online flight fiber laser coding machine

Device model: PM-GQ10, PM-GQ20 / PM-GQ30, PM-GQ50

Laser power: 10W, 20W / 30W, 50W

Laser wavelength: 1064nm

Beam quality (M2): ≤1.5 /≤1.8

Laser repetition frequency: 20 ~ 200KHz

Marking range: 70 × 70, 110 × 110, 170 × 170, 220 × 220 (mm) (optional)

Maximum linear speed: 9000mm / s

Minimum line width: 0.03mm

Minimum character: 0.15

Cooling method: air cooling

Total power consumption: 500W, 550W, 700W, 800W

Power demand: 220V / 50Hz

Appearance size: 900 × 800 × 1450mm

Feature description

1. Using optical fiber output, the electro-optic conversion rate is as high as 30%, and the power consumption is about 10% of the traditional model;

2. Configure special software for flying laser coding, use intelligent calculation to automatically identify the product and the location of the product to be marked, so as to achieve high-speed and accurate marking;

3. The length of marking content in the software is not limited, and the number of lines is not limited. The content of the code can be set to text, date, batch number, serial number, QR code, vector illustration, etc .;

4. Rotary encoder can be connected to detect the speed of the pipeline in real time to ensure the high-speed marking effect;

5. The control system is easy and fast to operate and easy for customers to use;

6. Can directly cooperate with the customer's production line operation, if necessary, our company can customize the assembly line or workbench for the customer;

7. No consumables, environmental protection, fast speed, safety, low cost and easy maintenance;

8. The logo is not erasable, never fades forever, and has the functions of anti-counterfeiting and anti-channeling.

Application area

It can be used for marking of most metal and non-metal materials and cutting of thin slices; such as: beverages, food, packaging, pharmaceuticals, tobacco, wires, cables, profile pipes, dairy products, electronic products, daily chemical products, etc.

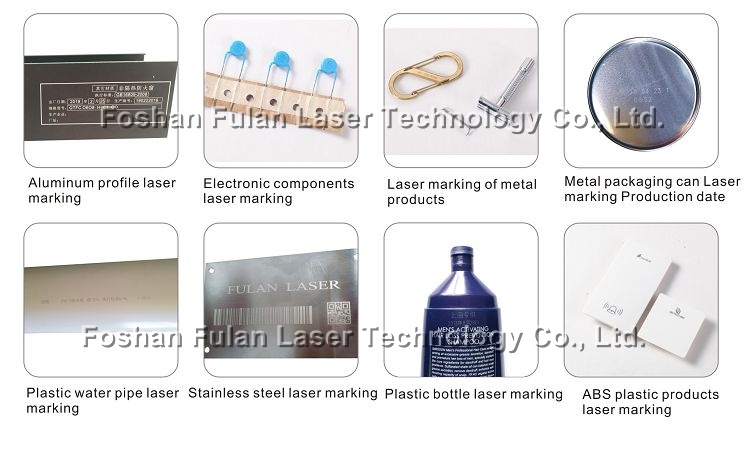

Sample show
