Laser engraving machine for large format mould
Laser engraving machine for large format mould

Device model: DFM-GQ50

Laser power: 50W

Laser wavelength: 1064nm

Beam quality (M2): ≤1.8

Laser repetition frequency: 20 ~ 200KHz

Marking range: 220 × 220 (mm)

Maximum linear speed: 9000mm / s

Minimum line width: 0.03mm

Minimum character: 0.15

Cooling method: air cooling

Total power consumption: 800W

Power demand: 220V / 50Hz

Feature description

1. The beam quality is good, close to the diffraction limit, so that more fine marking can be achieved;

2. Adopt optical fiber output, configure high-speed digital scanning head, marking speed is 2-3 times that of traditional models;

3. The electro-optical conversion rate is as high as 30%, and the power consumption is about 10% of traditional models;

4. Air cooling is adopted, and the whole machine is compact;

5. No consumables, maintenance-free, and long service life;

6. Six-axis linkage;

7. Optoelectronic positioning;

8. Infrared laser positioning;

9. Gantry structure.

Application area

Mainly used for deep carving and fine carving of hardware products, precision instruments, die steel, common metals and alloys (iron, copper, aluminum, magnesium, zinc and other metals), especially suitable for large-area carving, unlimited deep carving. It can also be used for marking metal and some non-metallic materials.

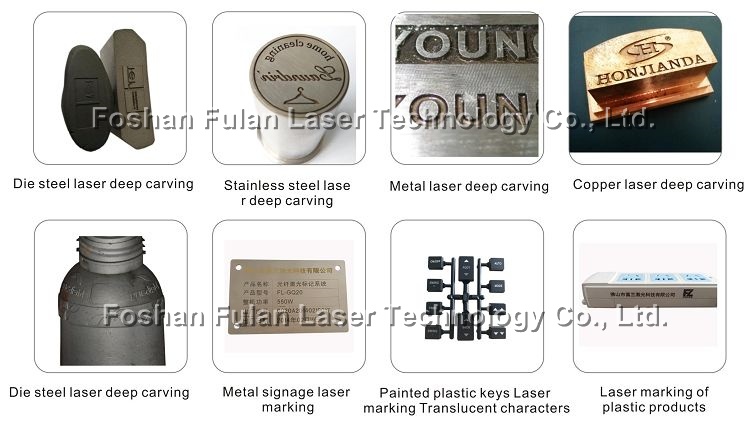

Sample show
