Laser engraving machine for mould
Laser engraving machine for mould
Specifications:

Device model: MJ-GQ60

Laser power: 60W

Laser wavelength: 1064nm

Beam quality (M2): ≤1.8

Laser repetition frequency: 20 ~ 200KHz

Marking range: 220 × 220 (mm)

Maximum linear speed: 9000mm / s

Minimum line width: 0.03mm

Minimum character: 0.15

Cooling method: air cooling

Total power consumption: 900W

Power demand: 220V / 50Hz



Feature description

1. The beam quality is good, close to the diffraction limit, so that more fine marking can be achieved;

2. Adopt optical fiber output, configure high-speed digital scanning head, marking speed is 2-3 times that of traditional models;

3. The electro-optical conversion rate is as high as 30%, and the power consumption is about 10% of traditional models;

4. Air cooling is adopted, and the whole machine is compact;

5. No consumables, maintenance-free, and long service life;

6. Six-axis linkage;

7. Optoelectronic positioning;

8. Infrared laser positioning;

9. Gantry structure;

10. High engraving precision and good stability, especially suitable for the processing of complex graphics.

Application area

Mainly used for deep carving and carving of hardware products, precision instruments, die steel, common metals and alloys (iron, copper, aluminum, magnesium, zinc, etc.). It can also be used for marking of metal materials and some non-metallic materials, as well as sheet cutting.

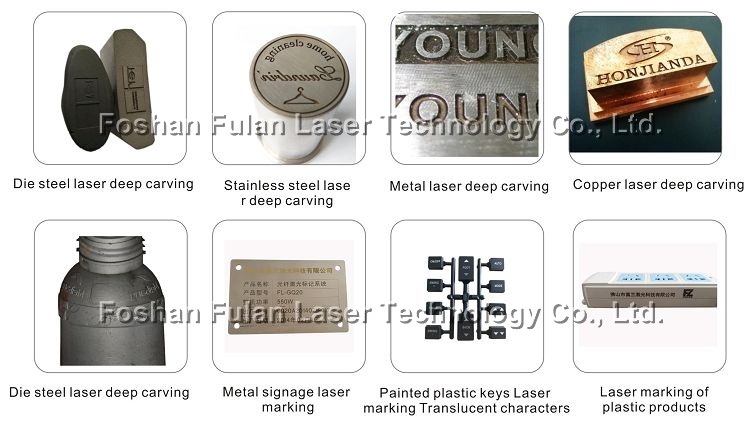

Sample show
